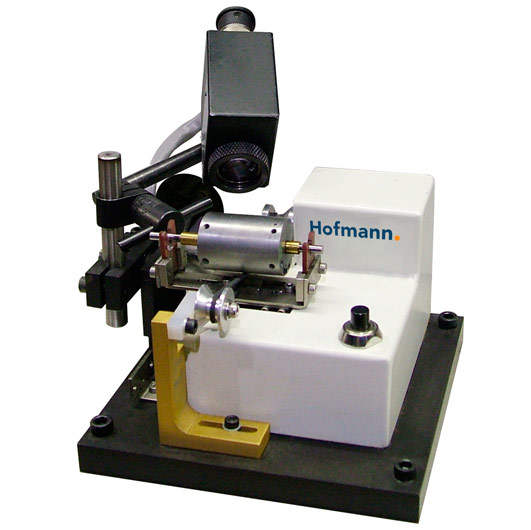

Type R-7.1 to 200 g
The Hofmann horizontal, hard-bearing balancing machine R-7.1 is used for high-precision balancing of very small rotors up to a max. weight of 200 g – like dental drill turbines or armatures from miniature electric motors.
Key Features
- Robust measuring table for adaption of
- V-blocks
- tooling to receive complete assemblies
- Extremely high measuring sensitivity
- Designed for desk-top installation
- Equipped with belt or compressed air drive
Application
- Balancing of very small rotors
- with own journals
- as complete assembly on a tooling
- Balancing of rotors from
- dental tools
- miniature electric motors
- miniature spindles
- model or toy drives
- turbocharger
- small turbines

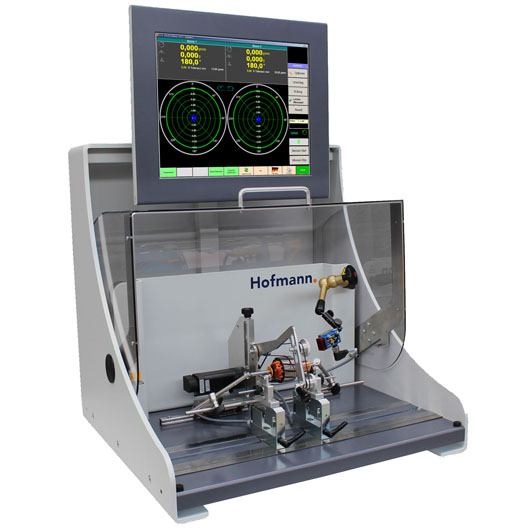

Type H-9.1 to 5 kg
The Hofmann horizontal, hard-bearing balancing machine H-9.1 is used for high-precision balancing of small to very small rotors up to a max. weight of 5 kg.
Key Features
- Very high sensitivity and measuring accuracy
- Pedestals designed for adaption of
- roller bearings or V-blocks
- tooling to receive complete assemblies
- Various install options
- Optional design for balancing of magnetized rotors
Application
- Balancing of small to very small rotors
- with own journals
- on a balancing arbor
- as complete assembly on a tooling
- Balancing of rotors from
- small electric motors
- spindles
- turbocharger
- small turbines
Types H-11.1 / H-12.1 from 25 to 50 kg
The Hofmann horizontal, hard-bearing balancing machines H-11.1 and H-12.1 resp. are used for high-precision balancing of various small rotors up to a max. weight of 20 kg and 50 kg
Key Features
- Very high sensitivity and measuring accuracy
- Pedestals designed for adaption of
- roller bearings or V-blocks
- tooling to receive complete assemblies
- Compact design featuring integrated measuring station and unbalance measuring system
- No special foundation required
Application
- Balancing of small rotors
- with own journals
- on a balancing arbor
- as complete assembly on a tooling
- Balancing of rotors from
- small electric motors
- machine tool spindles
- turbocharger
- small turbines
- textile machines
