The active balancing systems from Hofmann ensure an optimal reduction in vibration during machine operation. The advantage: Durable machines and higher efficiency.
Active Ring Balancing System

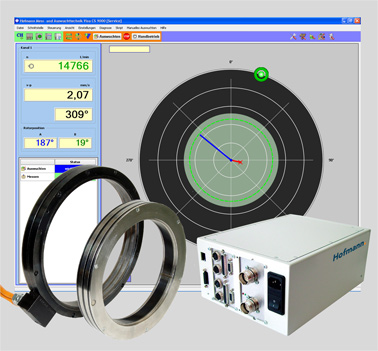

Active Balancer AB 9000
AB 9000 type active balancing systems are fast, precise, versatile and easy to upgrade.
Key Features
- Fully automatic balancing of systems (e.g. fans, grinding, milling and turning spindles, centrifuges) in one or two planes during operation; no machine shutdown
- Real-time monitoring of unbalance vibrations
- Simple integration, including upgrades, due to ring design
- Balancing at high rotational speeds in very short time by fast electro-magnetic actuator and adaptive balancing procedures
- Non-contact, wear-free transmission of drive power for the actuator that positions the balancing rotors.
- Pre-balancing software for manual correction of basic unbalance
- Neutralizing of balancing rotors
- Display of remaining balancing capacity
- ProfiBus / ProfNet certified; see certificate
- Windows-based operating software; also available for common machine controls
Application
- Fully automatic balancing during machine operation
- Correction of operation-related unbalances
Active Fluid Balancing System

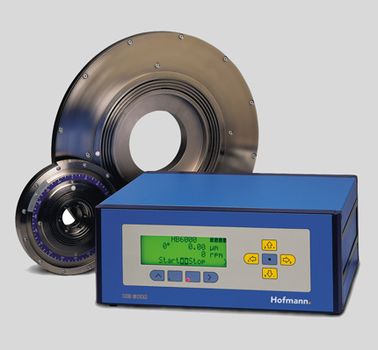

HydroBalancer HB 6000
The HydroBalancer HB 6000 from Hofmann compensates for large unbalance amounts by using fluids. Ring containers are used as balancing units which are divided into four chambers.
Key Features
- Balancing during rotation on one plane with unbalance monitoring
- Balancing with the aid of fluids, e.g. cooling lubricant of a grinding machine
- High precision balancing through extremely fine fluid metering
- Space-saving integration of the ring container in the machine spindle or rotor
- Pre-balancing software for manual correction of basic unbalance
- Easy retrofitting of existing machines
Application
- Automatic balancing, e.g. of grinding wheels and grinding spindles during machine operation
Active Mechanical Balancing System
MecBalancer MB 4002
The MecBalancer MB 4002 is intended for the automatic balancing of grinding wheels and grinding spindles during operation.
Key Features
- Balancing during rotation in one plane with unbalance monitoring
- Balancing through electro-mechanical displacement of two balancing weights in the balancing head
- Balancing heads with various balancing capacities for flange mounting or spindle integration
- Non-contact, wear-free transmission of power for the actuator motors
Application
- Automatic balancing of grinding wheels and grinding spindles
- Balancing during operation without machine downtime
Integrated Balancing System
AB 9100
The balancing system AB 9100 is designed for permanent installation in a machine (for example machine tool or fan). The rotors can be balanced under operating conditions – at any time and without special preparation
Key Features
- Real-time monitoring of unbalance vibration
- Windows-based operating software; also available for common machine control systems
Application
- Manual correction of operational unbalance
- Upgrade to AB 9000 (active ring balancing system) easily possible
